BT Quick Change Tapping Chuck

CNC MACHINING CENTER TAPPING

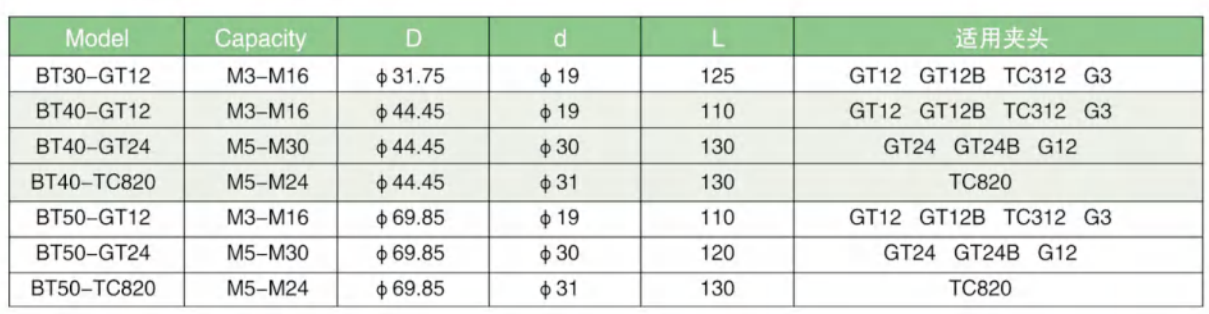

BT30/BT40/BT50 spindle compatibility

High-precision BT shank quick-change tapping chuck adapters for CNC machining centers. Features axial tension and compression float to compensate for pitch discrepancies between the machine's feed rate and the tap's actual cutting motion.

BT30

Small machining centers

BT40

Standard machining centers

BT50

Large machining centers

Features & Benefits

Tension & compression float

Quick collet change system

Rigid tapping compatible

Extended tap life

Usage: Select the BT shank size matching your machine spindle, then choose GT collets matching your tap size. The quick-change mechanism allows switching between tap sizes without removing the adapter from the spindle.

Compatible Tapping Accessories

Tapping Collets

96 variants

ERG Tap Collet

74 variants

Specifications

Material & Construction

Material: High-grade alloy steel, Interface: BT Taper, Accuracy: High precision ground, Finish: Heat treated and ground

BT Quick Change tapping Chuck adapter

Name: BT Quick Change tapping Chuck adapter
Brand: ZHUZHOU SENO
SKU: bt-quick-change-tapping-chuck-adapter
Availability: InStock

Select Specifications

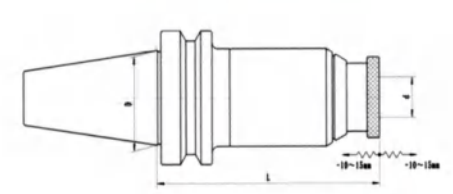

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
