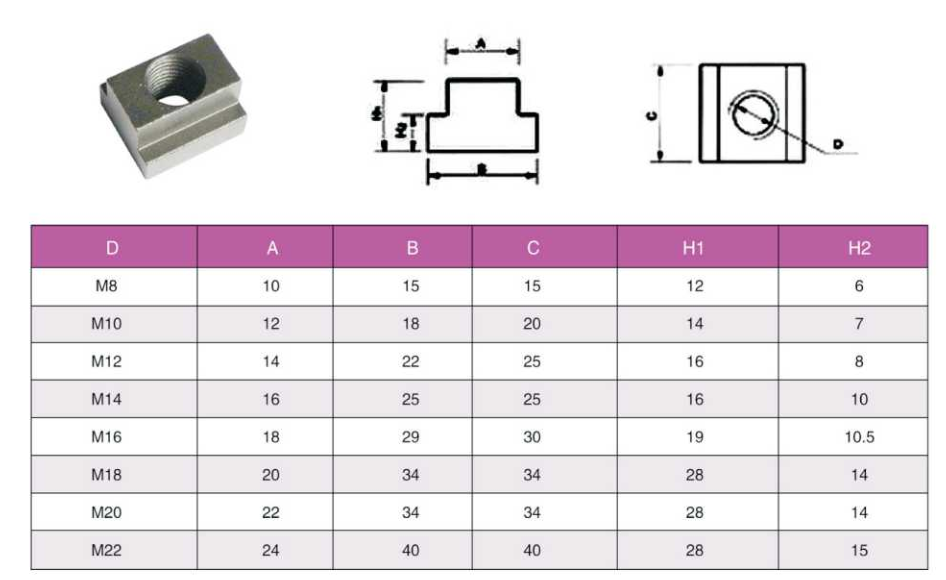

Clamping & Workholding - T-Nuts_Table.png

Clamping & Workholding Components - Previous main image

+/- buttons or keys to zoom • Scroll to pan • Click for full size

Keyboard: + zoom in, - zoom out, 0 reset

Specifications

Material & Construction

Material: High-Strength Steel, Hardness: HRC38-42

58-Piece Set Contents (Dimensions in mm)

1 T-Nuts (6 pcs per set)

Size	Top Width	Bottom Width	Total Height	Bottom Height	Length
M8	9.7	16	12	6.0	22
M10	11.5	18	14	7.0	22
M12	13.7	22	16	8.0	26
M16	17.6	28	20	10.0	32
M20	21.7	35	28	14.0	40

2 Studs (4 pcs × 6 lengths = 24 pcs per set)

Size	75mm	100mm	125mm	150mm	175mm	200mm
M8	4	4	4	4	4	4
M10	4	4	4	4	4	4
M12	4	4	4	4	4	4
M16	4	4	4	4	4	4
M20	4	4	4	4	4	4

3 Coupling Nuts (4 pcs per set)

Size	Total Height	Hex A/F	Base Ø	Base Thick
M8	12.8	13.7	22	2.5
M10	15.0	16.5	23	3.3
M12	18.0	18.5	26	3.8
M16	22.2	25.8	35	6.0
M20	25.5	31.8	40	6.5

4 Flange Nuts (4 pcs per set)

Size	Nut Total Height	Nut Hex A/F
M8	22	14
M10	25	17
M12	30	19
M16	40	26
M20	45	32

5 Step Blocks - H×W×T (2 sets = 6 pcs per set)

Size	Small	Medium	Large
M8	30×17×25	45×27×25	93×52×25
M10	30×17×25	45×27×25	93×52×25
M12	30×17×25	45×27×25	93×52×25
M16	46×27×32	62×36×32	95×57×32
M20	59×35×38	97×57×38	133×77×40

6 Step Clamps - H×W×T (2 sets = 6 pcs per set)

Size	Small	Medium	Large
M8	63×25×13	100×25×15	150×25×19
M10	63×25×13	103×25×16	150×32×19
M12	65×25×13	102×32×19	152×32×22
M16	65×32×16	103×38×19	153×38×22
M20	100×38×19	150×38×25	200×50×25

Total: 58 pieces per set

T-Nuts (6) + Studs (24) + Coupling Nuts (4) + Flange Nuts (4) + Step Blocks (2×3=6) + Step Clamps (2×3=6) + Carrying Case

M12 size highlighted in amber - most popular choice

Clamping & Workholding Components

Name: Clamping & Workholding Components
Brand: ZHUZHOU SENO
SKU: clamping-workholding-components

Professional-grade clamping and workholding solutions including studs, T-nuts, coupling nuts, flange nuts, step clamps, and step blocks. Essential components for secure workpiece fixturing and machine table setups. Manufactured from high-strength steel with precise threading and dimensions for reliable, repeatable clamping performance.

Professional 58-piece clamping sets for secure workpiece fixturing on machine tables. Complete solution with T-nuts, studs (6 lengths), coupling nuts, flange nuts, step clamps, and step blocks.

Material: 8.8 Grade High-Strength Steel | Hardness: HRC38-42 | Finish: Black oxide coating

Select Specifications

D=Diameter | L1, L2, L3=Length Dimensions | L=Overall Length | D1=Shank Diameter | All in mm
